File:MiG-21bis radar switch panel.png

No higher resolution available.


Summary

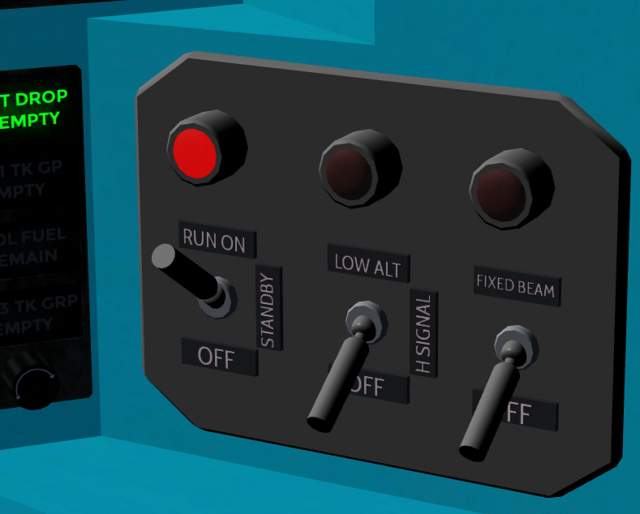

Description	(en) The radar switch panel on the right cockpit wall is used to power the radar and set it into beam mode if needed. The left light should only light up 1 second after it is run on - otherwise it indicates a failure and you need to power the radar off.
Date	23 September 2019 (2019-09-23)
Source	Own work
Author	Vanosten
